Flat panel detector type C-arm

Product Introduction

SHOC-5KW&SHOC-15KW

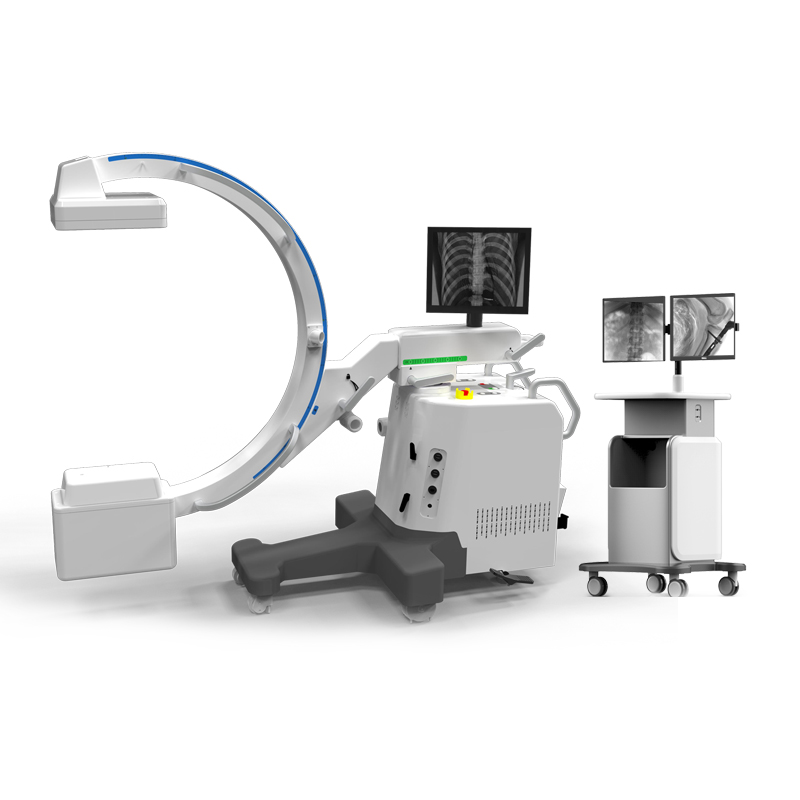

C-arm machine(FPD type)








Introduction
Powerful mobile C-arm machine designed for a wide range of applications in orthopedics, neurosurgery, pain management, and emergency room. With high frequency generator, it offers fine definition image with low dose. It brings to our users with unparalleled experience for operation when using the C-arm for orthopedic surgery and intervention operation. High performance with excellent image quality thanks to a-Si detector. The 21×21cm image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. When integrated into mobile C-arm fluoroscopic X-ray system, it is ideal for vascular or surgical applications.

The advantages of the split C-arm machine:
Flexibility and operability:
The design of the split C-arm machine allows the equipment to be operated flexibly in different surgical environments and adapt to various complex surgical needs. The workstation is equipped with a medical display screen and exposure foot brake, so that doctors can operate the equipment indoors and outdoors, improving work efficiency
Safety and stability:
The split structure facilitates the operation of the device compartment, which can avoid the surgeon from absorbing unnecessary radiation during operation and ensure safety during the operation
Versatility and scope of application:
The split C-arm machine is not only suitable for clinical surgery, but also suitable for teaching and research and other scenarios to meet diverse needs 1Ease of maintenance and upgrades: Thanks to the split design, equipment maintenance and upgrades are easier and the impact of equipment failures is reduced




Features
◆High -frequency generator emits high-quality and hard x-rays with strong penetrability.
◆21cm*21cm flat panel detector, which has bigger image size than image intensifier.
◆Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.
◆High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.
◆Three 19’’ Dell brand monitors project real-time video and reference images simultaneously for quicker diagnosis and inference .
◆Microcomputer control system with self-diagnostic function and automatic protection.
◆Modular design offers error codes and reset button.
◆Double CPU control improves the stability and safety of the equipment.

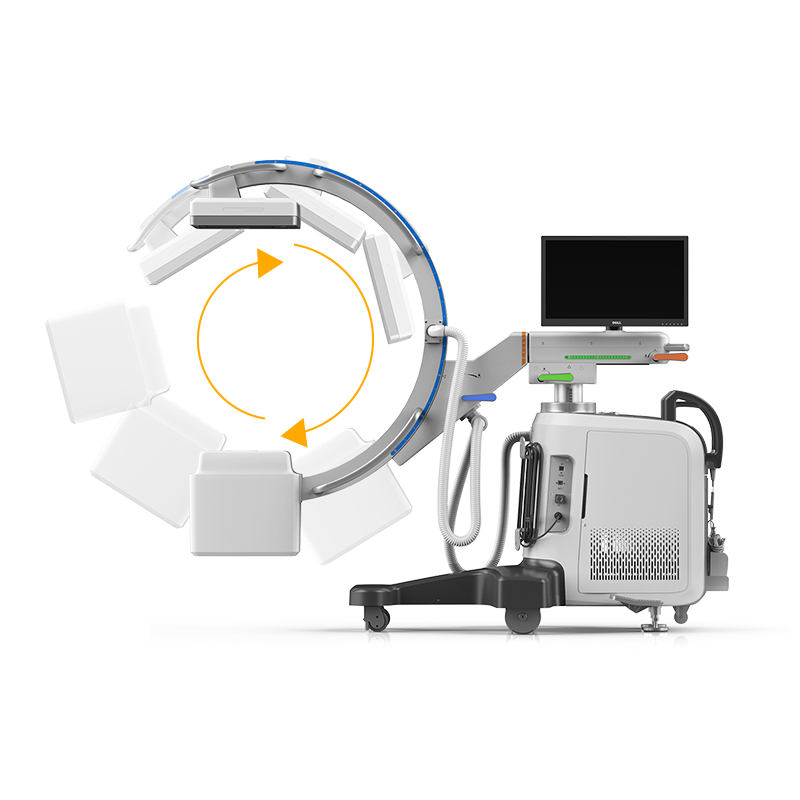

◆Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment.
◆Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.
◆PACS connectivity with DICOM 3.0 is convenient to send, receive and print images.



Summary for choice

Surgery type                  Recommended C-arm Power      DSA needed?
Orthopedic/Trauma                  5kw                          No
Gynecology HSG                    5kw                          No
Pacemaker implantation              15kw                         No
Cardiac peripheral Vessels           15kw                          Yes
ERCP                             15kw                          Yes
