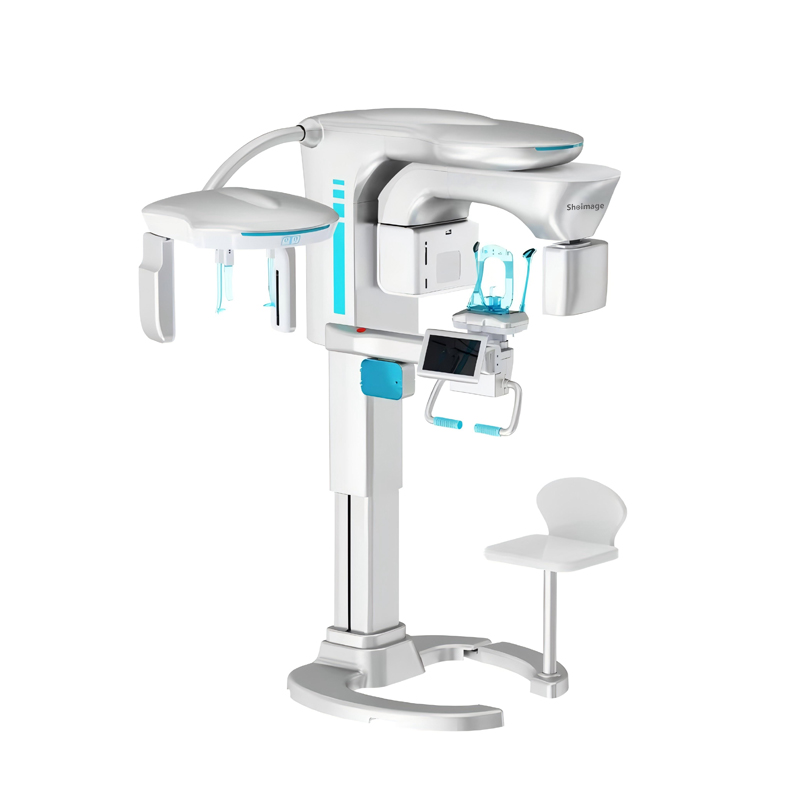

CBCT

Product Introduction

1. Low radiation: The pulsed exposure dose is 50% less than continuous exposure.
2. High voltage generator: 400khz ultra-high inverter frequency, heat dissipation capacity, insulation capacity, improve the stability of the equipment, and be able to continuously shoot 200 groups of CT data.
3. Motion Compensation Artifact Algorithm: Effectively removes motion artifacts and can improve image quality by 60%.
4. AI low-dose algorithm: At the same time as the low dose, the image algorithm is used to ensure the image quality.
5. New 4-in-1： CT, panorama, head and side, integrated sliding seat，can sit and stand to meet the needs of all patients in an all-round way.
6. Integrated sliding seat: can be sitting, standing, sliding and rotating dental tablet. Sitting shots are more stable and more comfortable.
7. Adaptive head clamp: Head clamp automatic retraction and release
8.  monitoring: During the shooting exposure, if the patient has a large movement, a pop-up window will prompt, and the monitoring video will be retained for doctor-patient communication.
9. Large field of view 18*14: One imaging, able to see the temporomandibular joint and complete maxillary sinus.
10. Intelligent post-processing software: is convenient for clinical operation, simple, efficient and smooth. Lateral automatic tracing, bone age analysis, and orthodoxy analysis.

    Technical data
    FOV	18*14 or 16*12
    CT/OPG detector
    Detector	a-Si Flat Panel Detector
    Scintillator	Cesium Iodide
    Minimum Voxel Size	0.05mm
    Pixel Size	Image pixel: 98μm
    Scan Time for CT	24S,18S,8S
    Freely Adjusting the FOV in CBCT Mode	Yes
    Ceph Detector
    Detector	a-Si Flat Panel Detector
    Scintillator	Cesium Iodide
    Pixel Size	Detector Effective Field of View: 233.1mm×7.2mm
    Transmission Mode	Wired Transmission
    High Voltage Generator
    X-ray Generator Power	1200W
    Working Pattern	Continuous/Pulsed
    Tube Voltage	60kV～100kV
    Tube Current	2mA～12mA；
    Convert Frequency	400kHZ
    Exposure Mode	Pulsed/Continuous Exposure
    X-ray Tube
    Focal Spot	0.5mm
    Target Angle	5°
    Tube Voltage	60kV～100kV
    Tube Current	2mA～12mA；
    Gantry
    Vertical Range of Column Movement	690mm
    Rotating arm	Rotational bias ≤±1°
    Translation Range of Rotational Axis	Translation Distance: 0-86mm, Bias ≤±5mm
    Functions	CT/Panoramic Jaw Rest TMJ Jaw Rest Temporal Clip Head Clip
    Movable Jaw Rest	Yes
    Touch Screen
    Installation	Installation Method: Detachable Mobile Touch Screen
    Functions	Rise: Controling the rise of the column
    	Fall: Controling the fall of the supporting column
    	Capture Mode: Simultaneously displaying the capture mode
    	Voltage: Displaying the preset voltage and adjusted voltage during capture
    	Current: Displaying the preset current and adjusted current during capture
    	Automatic Ear Clip: Loosening/Tightening the temporal clip
    	Positioning Laser: Turning on/off the foot positioning laser
    	Partial Adjustment: Adjusting the height of the jaw rest
    Workstation
    Operating Systems	Memory：6GB Disk capacity：500GB Display Card:High-speed Image Processing Board CD-ROM: DVD/CD-ROM Drive Network Card: Gigabit Network Card Screen Size: 23 inches Screen Type: LCD, Color
    Image Processing Algorithm	Metal Artifact Correction Algorithm
    Image Acquisition Mode	CT/OPG/CEPH
    Auto Focus	Auto Focus(Third-Party Certification provided)
    Patient Acquisition	Optional Modes: Children, Elderly, Male, Female
    Exposure settings	Tube current, Tube voltage, Voxel size
    Image Browsing and Editing	Browsing the uploaed and captured images (Including CT, OPG, CEPH) Changing the contrast/luminance of images Image zooming Dragging the image Edit list: Text/ Curve/Ellipse/Rectangle/Polygon with arrows, remark
    Image Sharpening	Calling the API and passing in the corresponding coefficients to get the adjusted image Adjusting the window width and window level in the Mater software Defaulting sharpened image loaded in the background Customizing the coefficients in the configuration page to change the sharpening effect in real time
    Automatically Marking the Neural Tube	With the AI algorithm, the neutral tube could be marked automatically in the panoramic image and also displayed through the image in the MASTER software.
    Scanning the QC Code to Get Panoramic Image	Patients can scan the QR codes to download their panoramic images Enabling the storage and transmission of electronic image
