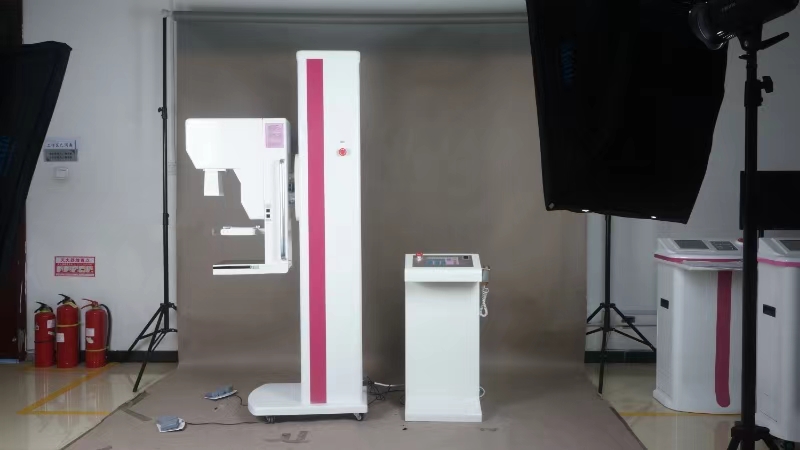

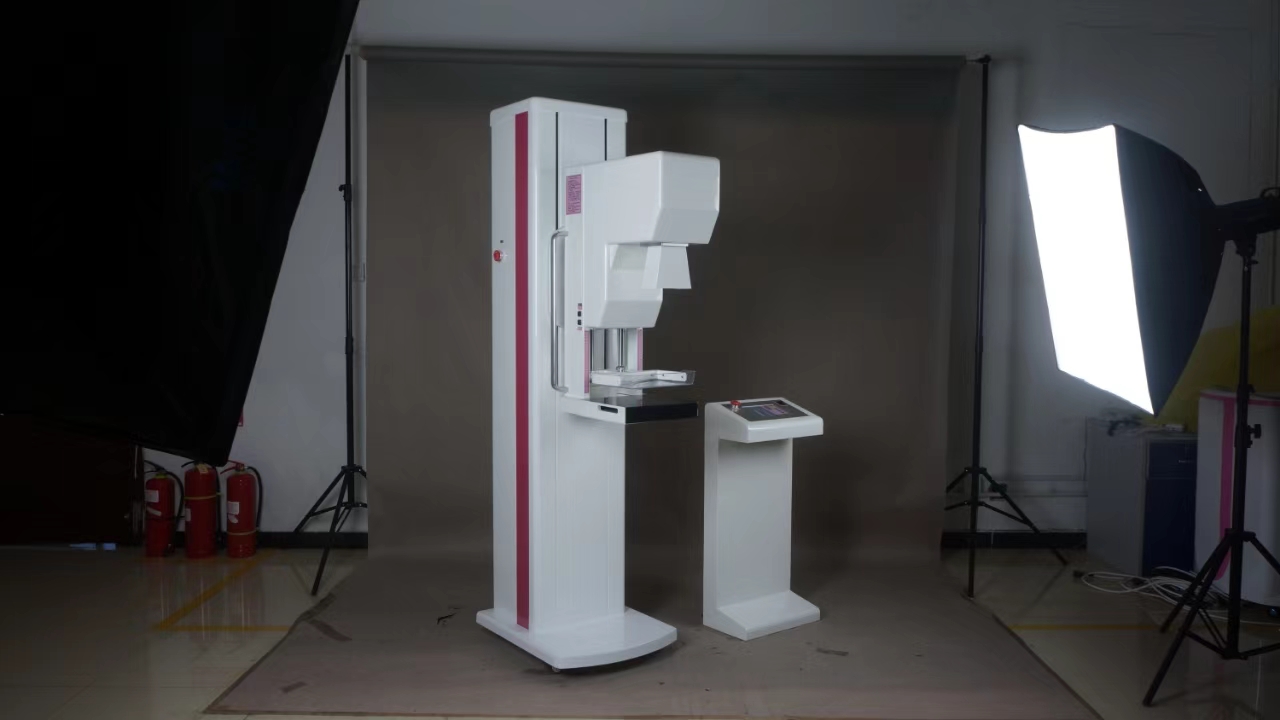

DIGITAL Mammography System
Model: SHO-DMS02
Fill in the form to get more product information
Product Introduction
| Model | SHO-DMS02 |
| Power Output | 6kw |
| Focal Spot Size | Dual Focus 0 2 /0.4mm |
| Target Material | Molybdenum (Mo) |
| Port Material | Beryllium (Be) |
| High-speed Anode Drive | 2800rpm |
| Target Angle | 12° |
| Anode Heat Storage | 80KJ |
| Anode Cooling | Air Cooling |
| U-ARM Vertical Movement | 590mm |
| Rotations Deg | +180---165° |
| SID | 650mm |
| Cassette Image Receptor | 24cmx30cm (18cmx24cm Optional) |
| Packing Weight | 315kg |
