Handheld Ultrasound Scanner

Model: RC-H8(Convex probe)&RC-H6(Linear probe)

Fill in the form to get more product information

Function Model	Handheld B-Ultrasound Convex Probe --- RC-H8	Handheld B-Ultrasound Linear Probe --- RC-H6

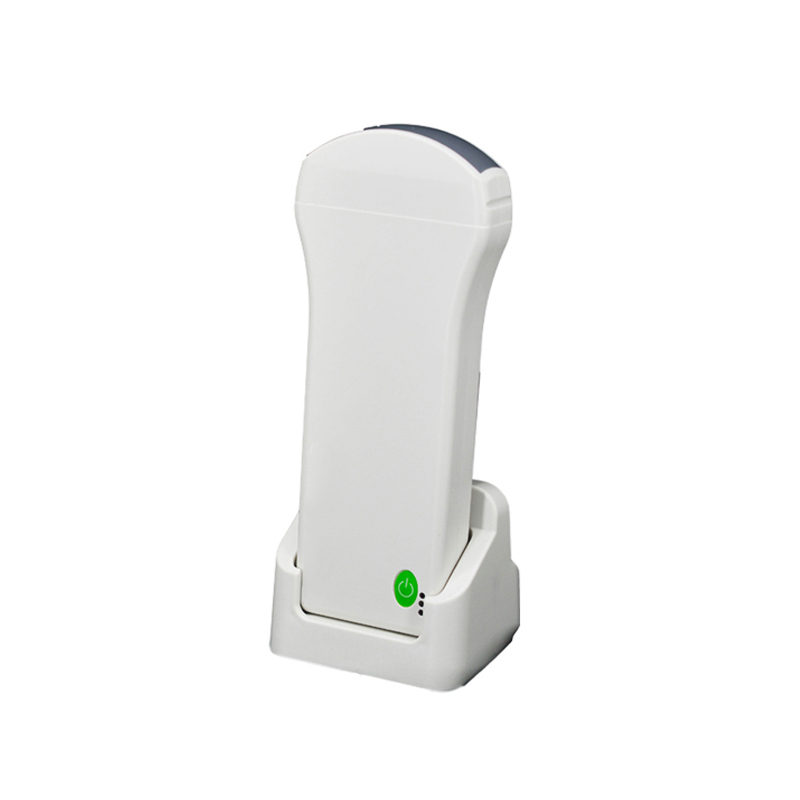

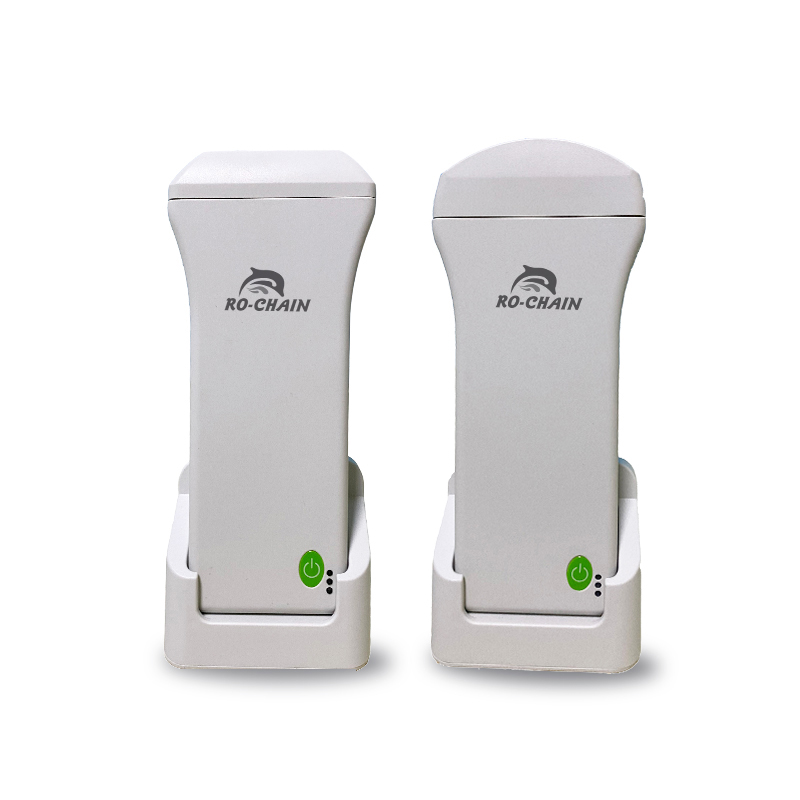

Appearance
Battery	Storage：3000 mAh Stand-by 1.5 hours	Storage：3000 mAh Stand-by 1.5 hours
Core Frequency	3.5 Mhz	8 Mhz
Elements	80	80
Channel	24	24
Maximum Scan depth	≥18cm	≥5cm
Machine Dimensions	1705623 mm	1605623 mm

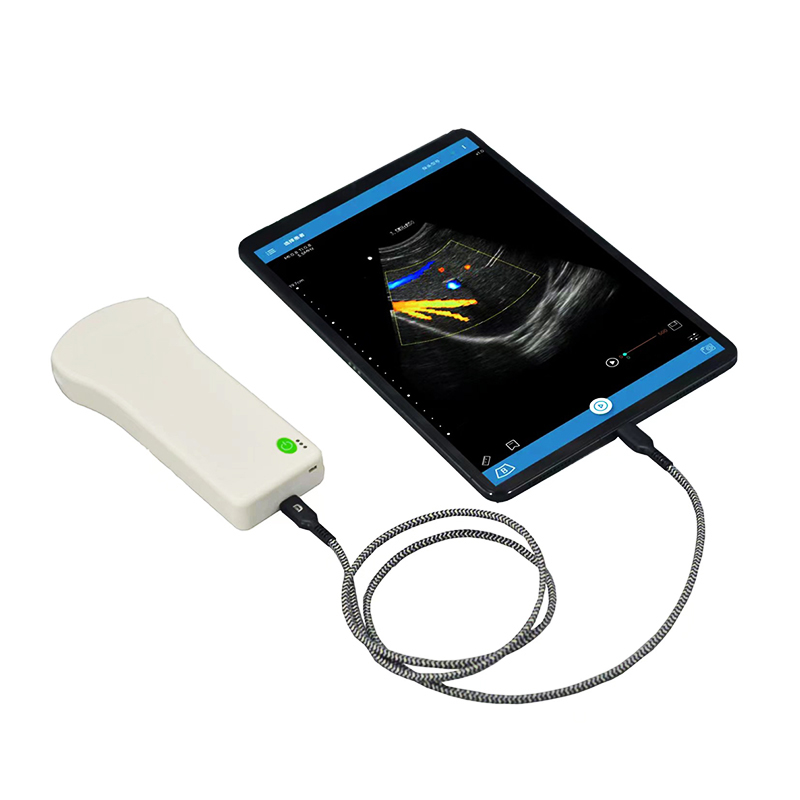

Support System：	Android 8.0 and above	Android 8.0 and above
Mode	B, CFI, M, BD, BCD,	B, CFI, M, BD, BCD,
Adjustable Specification	Depth Frequency Gain Blood Gain M/D Speed Sampling frame adjustment Sampling Volume adjustment Image Optimization Preset	Depth Frequency Gain Blood Gain M/D Speed Sampling frame adjustment Sampling Volume adjustment Image Optimization Preset
Measurement	Distance Perimeter Area Blood flow velocity M Time	Distance Perimeter Area Blood flow velocity M Time
Tag and Display	Text Tag, Comment Body Mark Current measurement information display Probe Model Working Frequency TI, MI display	Text Tag, Comment Body Mark Current measurement information display 4.Probe Model 5.Working Frequency 6. TI, MI display
Image and Video	Video playback frame selection Video storage format: MP4 Image storage format: JPG	Video playback frame selection Video storage format: MP4 Image storage format: JPG
Patient Information	Create the new patient information	Create the new patient information
DICOM Function	Optional	Optional
Languages	English/Chinese	English/Chinese
Net weight Gross weight	500g 800g	400g 800g
Package Size	20019075mm	20019075mm
