Ultrasound Bone Densitometer
Model: SHO-UBD02
Fill in the form to get more product information
Product Introduction

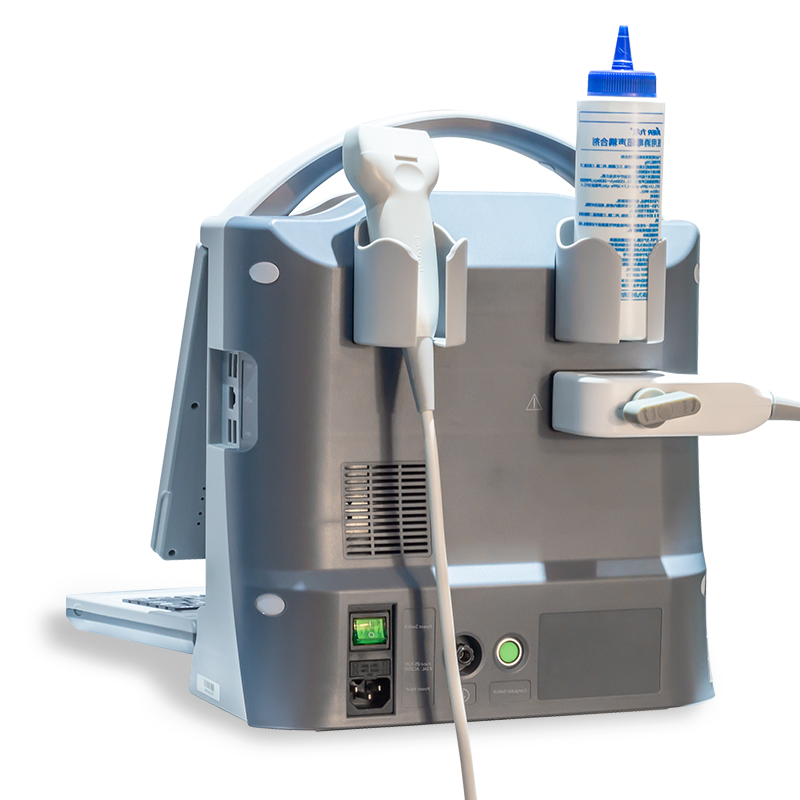

SHO-UBD02 Automatic High Effective Portable Ultrasound Bone DensitometerFeatures:
- Using the full dry technology, makes diagnostic more convenient.
- The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
- the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
- use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
- With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
- With a special correction system, to correct the system error effectively, get more accurate measurement results
- multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
- it with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 120.
- English menu
- the first one pass EMC test
Performance parameter:
- Measurement parts: radius and Tibia
- Measurement mode: double emission and double receiving
- Measurement parameters: Speed of sound (SOS)
- Analysis Data: T- Score, Z-Score, Age percent[%], Adultt percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). BMI , SOS
- Measurement Accuracy : ≤0.25%
- Measurement Reproducibility: ≤0.25%
- Measurement time:Three Cycles adults measuring time <15 seconds,Three Cycle Children measuring time < 3seconds
- Probe frequency : 1.20MHz
- Date analysis : it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
- Temperature control: Perspex sample with temperature instructions
- Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
- Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
- Daily Calibration: automatic calibrating after power on.
- All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically .
- Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
- repot mode: color
- Report format: supply A4, 16K ,B5 and more size report
- Portable model
- Computer configuration: CPU dual core, RAM 4G , electronic hard disk, wireless mouse 128 Hard Disk.
- Printer: optional
- Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
- External medical special power supply, power>60W
- Connect to the internet and provide remote services.
- Monitor: 12.1’ color HD color LED monitor.
- Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
- Main unit weight< 4kgs, easy to carry
- Added anti-interference ability
