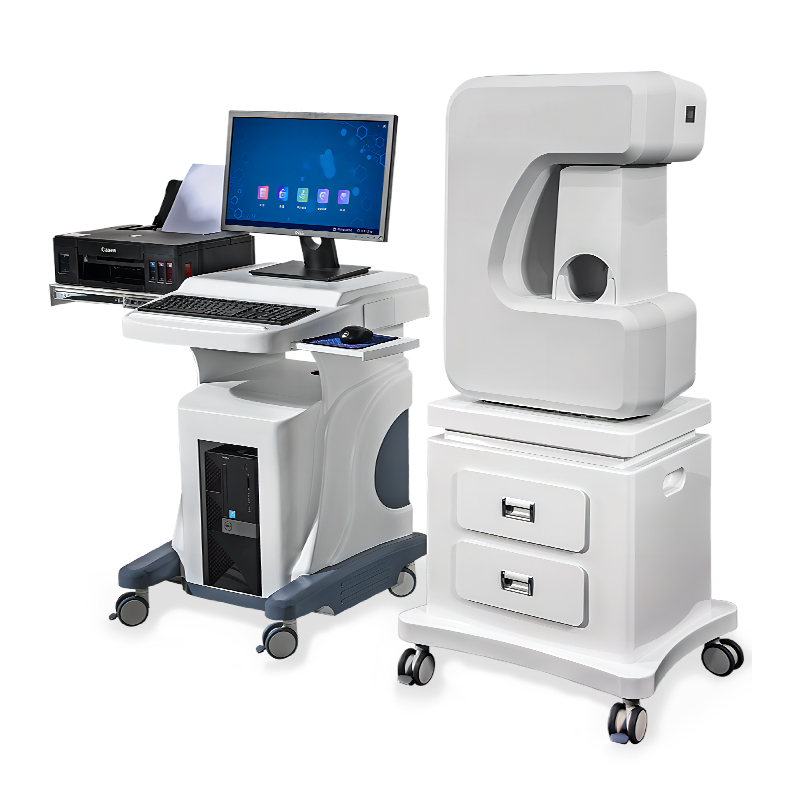

DEXA Bone Densitometer

Model: SHO-DEXA02

Fill in the form to get more product information

Product Introduction

SHO-DEXA02  DXA Bone Densitometer
Dual-Energy X-ray Absorptiometry (DXA or DEXA) Bone Densitometry.

Technical Specifications:
 Large Scale Integrated Circuit
 Multi -Layer Circuit Board Design
 Light Source Technology With High Frequency and Small Focus
 Imported High Sensitivity Digital Camera
 Using the Cone - Beam and Surface Imaging Technology
 Using Laser Beam Positioning Technique
 Using the Unique Algorithms.
  ABS Mould Manufactured, Beautiful , Strong and Practical
 Special Analysis System Based on Different Countries People
Technical Parameter:
  1. Using the Dual Energy X-ray Absorptimetry.
  2. Using the Most Advanced Cone - Beam and Surface Imaging Technology.
  3. With High Measurement Speed and Short Measurement Time.
  4. With Dual Imaging Technology to Get More Accurate Measurement.
  5. Using Laser Beam Positioning Technique, Making the Measuring Position More Accurate.
  6. Dectcing Image Digitization,  to Get Accurate Measurement Results.
  7. ing the Surface Imaging Technology, Measuring Faster and Better.
  8. Using the Unique Algorithms to Get More Accurate Measurement Results.
  9. ing the Full Closed Lead Protective Window to Measure, only Need to Put the Patient’s Arm into the Window. The Equipment is Indirect Contact with the Scanning Parts of the Patient. Easy to Operate for the Doctor. It is Safety for the Patient and Doctor.
  10. ing Integrated Structure Design
  11. Unique Shape, Beautiful Appearance and Easy to Use.
Performance Parameter:
  1. Measurement Parts: the Front of Forearm. 1/3 of distal radius
  2.  X ray tube voltage：High Energy 70 Kv, Low Energy 45Kv.
  3. The high and low energy corresponds to the current,  High Energy 0.25 mA,       Low Energy 0.45mA
  4. X-Ray Detector：Imported High Sensitivity Digital Camera.
  5. X-Ray Source：Stationary Anode X-ray Tube (with High Frequency and Small Focus)
  6. Imaging Way：Cone - Beam  and  Surface Imaging Technology.
  7. Imaging Time：≤ 4 Seconds.
  8. （error）≤ 0.4％
  9. Repeatability Coefficient of Variation  CV≤0.25％
  10. Measuring Area :≧150mm*110mm
  11. Can be connected to hospital HIS system, PACS system
  12. Provide Worklist Port with independent upload and download function
  13. Measuring Parameter: T- Score, Z-Score, BMD、BMC、 Area,Adult percent[%], Age percent[%], BQI (The Bone Quality Index) ,BMI、RRF: Relative Fracture Risk
  14.  t with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 130.
  15. Measuring children over three years older
  16.  Positioning: monitoring positioning
  17. With body mass index BMI assessment function
  18. Risk factor assessment: yes
  19.  Original Dell Business Computer: ，Intel i5，Quad Core Processor 、8G、1T、22’inch  HD Monitor
  20. Operation System: Win10 64 bit.
  21. Working Voltage: 220V±10%, 50Hz.
  22.  Configuration:
DXA 800E Main Unit
DXA 800E Intelligent Analysis System
DXA 800E Dedicated data acquisition system card
DXA 800E  phantom
Dell Business Computer with i5 CPU
Dell 22  inch Color LED Mornitor
System control data control line (3 m)
Monitoring image data cable (3 m)
X - ray image acquisition data line (3 m)
Trolly and table
PSB Power line
 Optional:Trolly and table ,
      Color Inkjet printer
