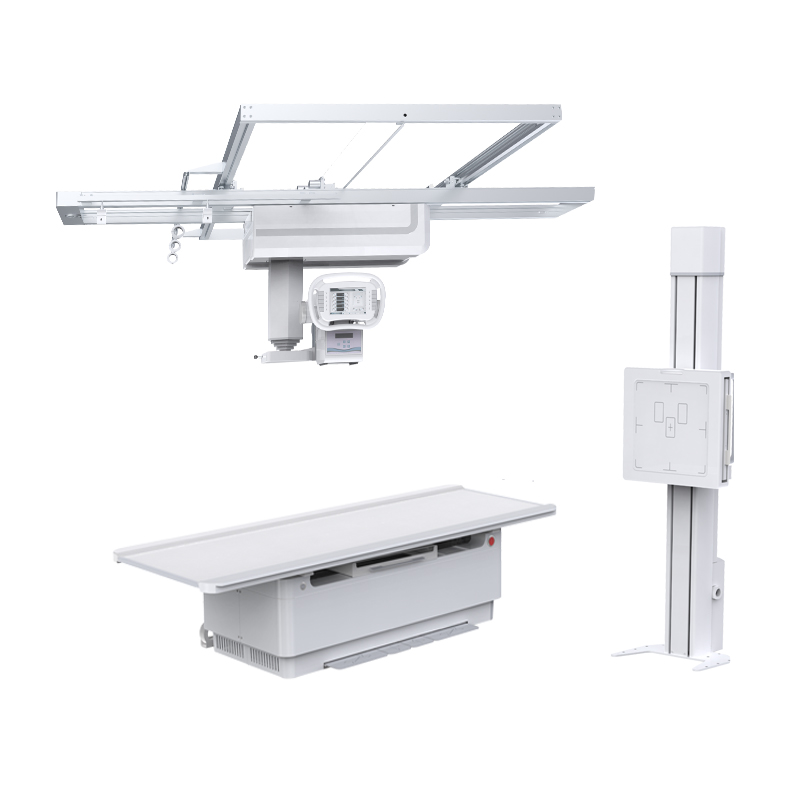

Ceiling suspended X-ray machine

Product Introduction

Product Description

SHO-CMX01 is a functional machine integrated digital radiography.
It can work in radiology department where in Medical Center, Diagnostic Center, Health Examination Center, Orthopedics and Trauma for doing radiography exams like chest, limbs abdomen, lumbar etc.
It meets the radiographic examination of all parts of the human body, including conventional radiography, special radiography (image stitching), precise visual radiography, large-area fracture radiography, and large-scale physical examination radiography, suitable for all clinical departments of the general radiological department.














Technical specification

Item	Content	Technical Parameter
Power	Voltage	380V
	Frequency	50Hz±1Hz
	Capacity	105kVA
	Internal Resistance	≤0.17Ω
X-ray Generator	Power	65.5KW
	Inverter Frequency	500KHz±20%
	Radiography Tube voltage	40kV—150kV
	Radiography Tube current	10mA—800mA
	Radiography Exposure time	1.0~10000ms
	Radiography mAs	0.1mAs—800mAs
Collimator	Brightness	>100Lux
	Visible light illumination	5s ~ 45s(every step 5s).
	Filter	≥1mmAL
X-ray tube	Model:	E7254FX
	Tube Focus: big/small	1.2mm /0.6mm
	Input power	180Hz: Big focus 102kW Small focus 40kW
	Anode thermal capacity	285KJ (400KHU)
	Rotary anode speed	9700rpm (180Hz)
	Component thermal capacity	950KJ (1339KHU)
	Target angle	12°
	Fixed filter	0.8mm Al / 75kV

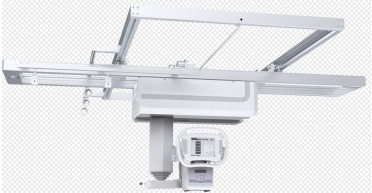

Suspending Console	Lateral movement	≥1950mm
	Lengthways movement	≥2250mm
	Vertical movement	≥1500mm
	X-ray tube move around horizontal line	±120°
	X-ray tube move around vertical line	±135°

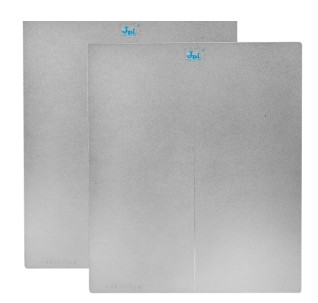

Flat Panel Detector*2 PLD1717X+PLD1717V3	Active area	427(H)mm×427(V)mm
	Pixel pitch	139μm
	Pixel matrix	3072(H)×3072(V)
	Limiting resolution	Unattenuated body mode≥3.7 lp/mm 25mm thick aluminum attenuated body mode≥3.4 lp/mm
	A / D transition	16 bit
	Acquisition speed	Up to 30 fps
	Energy range	40 - 150 kVp
Diagnostic Table	Table lengthways movement	≥1000mm
	Table lateral movement	≥260mm
	Table vertical movement	≥320mm
	Cassette lengthways movement	500mm
	Table terrain clearance	560mm
	Loading capacity	200KG
	Detector to Table distance	≤60mm
	Filting grid	18*18, 103LPI(manual)

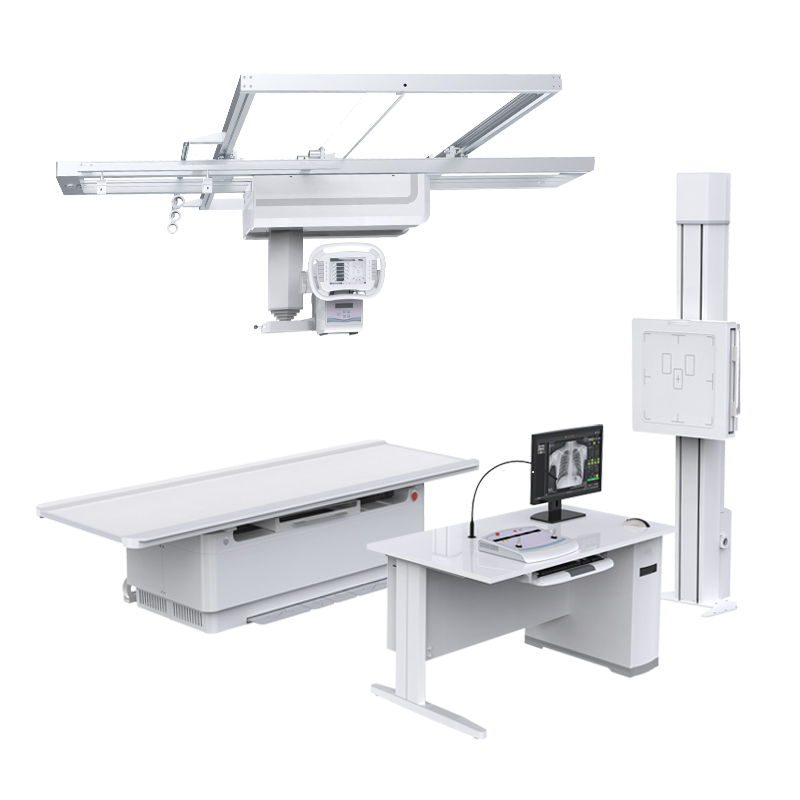

Computer workstation	19inch monitor +computer +keyboard +mouse +speaker
	Joystick remote controller
	Foot brake control system
	Desk
	Image professing software
Image Processing Software functions	Basic operations: Registration: regular registration, emergency registration, adding agreement, adding items, clearing information, starting inspection. Work list: list information, search for patients to be examined, refresh of the to-be-examined list, deletion of examinations, and display column settings. Start inspection, emergency registration. Exam list: list information, examined patient display and search, delete images, image storage, CD burning, add items, display column settings, modify examination information. Patient size: thin adults, adults, fat adults; Photography parameter settings: exposure mode, frame rate setting, kVp, mA, ms, mAs , AEC, focus selection; Perspective parameter setting: exposure mode, frame rate setting, kVp, mA, ABS, time reset. Image acquisitions and professing software functions: Browsing Tools: Zoom, Flip Horizontal, Flip Vertical, Rotate Left 90 Degrees, Rotate Right 90 Degrees, Zoom In, Zoom Out, Original Size, Move Image, Invert Color, Adaptive Size, ROI, Magnifier, Magnifier, Default Window Width Window Level, ROI window width and window level, visible window width and window level, point gray value, advanced processing, ellipse gray measurement. Measurement tools: arrow, cardiothoracic ratio (CTR), distance measurement, angle measurement, spine measurement. Image output  and management operations: System Tools: Text Marker, Anterior Body Marker, Left Marker, Right Marker, Circular Crop, Delete Image, Delete Tool,Error reset, exposure indicator, full screen, save current image, print. Report editing: patient information display and editing, image selection, report content template selection, report description, report conclusion, report description + conclusion, editing knowledge base, reporting doctor, reviewing doctor, reporting time, printing template, setting, saving report. Report Printing: Quick Print, Print Report Image Archive, Burn, Print: Delete Image, Image Storage, Browse Image, Report, Lock/Unlock, Store Queue, Print Queue. Disc Burn: Volume Label, Save Settings, File Compression, File Structure. Print: Access to DICOM Printer, Local Printer. System Settings: System, Annotation Information, Tools, Others. Hardware Configuration: Syncbox, High Voltage, Probe, Collimator, DAP; Network. Configuration: Local, Job List, Netstore, Local Store, Print. Check Management: basic information, placement information, hardware parameters, image processing, inspection protocol. Quality management: search, system management. User management: add, update, delete, authority.








1. Imported X-ray tube

1. Canon high-speed X-ray tube.
2. Suitable for long-time high intensity exposure.
3. High rotating speed, fast heat dissipation and long service life.



1. Self-developed high power and high frequency generator

1. 500kHz ultra-high inverter frequency, 800mA m
2. aximum tube current, stable radiation output, excellent radiation quality, good imaging effect.
3. High-power high voltage generator to ensure high quality and stable

radiation output.

1. Guaranteed after-sales service, low maintenance costs.



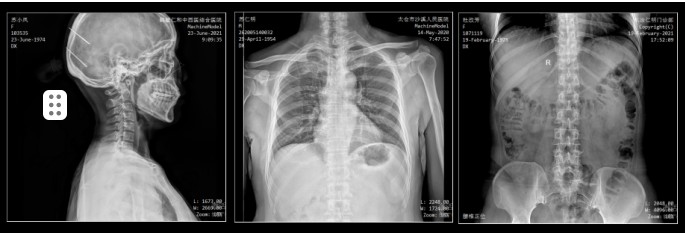

1. Two FPD, realizing radiography functions: wire and wireless.
2. 17”*17” ultra-high-definition pixel FPD, larger field of view, no need to move to observe the entire dynamic process;
3.
4. Advanced and efficient flat panel technology, the image with no geometric distortion, providing high-resolution and accurate images and accurate basis for clinical diagnosis;
5. In the process of visualization or replay, if suspected lesions are found, millisecond high-definition spot shoots can be carried out to capture single-frame images at any time and accurately capture lesions, so that doctors can further diagnose and analyze, reduce misdiagnosis, and help to quickly compile reports.



1. Automatic Electric Collimator

1. Quickly select and preset the desired field of view, saving time in positioning;
2. According to shooting needs or technicians' usage habits, one key switches the beam range, efficient and convenient. The conventional beam limiter can only automatically switch the two beam ranges of radiography and the automatic electric collimator can automatically adjust the beam size according to different body position, which is more intelligent and greatly improves the inspection efficiency.



1. Double high-density grids

1. The function of the high-density filter grid to filter scattered rays is better, which can further improve the image quality;
2. Two high-density grids as standard, special distance dedicated;
3. The grid can be removed for low-dose examinations.

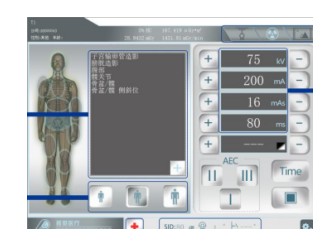

10.4 Inch large screen touch
screen system

New added touchable table-side screen system come with multifunctional functions:
 Synchronized with the station, radiographer can create a new exam anywhere both in X-ray room and control room, which is more convenient for the doctors’ daily exams and emergency, no need repeat settings.

1. re-view images after exposure,
2. Real time display SID stretching,
3. Setting exposure parameters,
4. Human graphic body part selection of exposure,
5. Adjust collimator-effective area,
6. Digital display movement: tube head rotation angle,
7. 3D model positioning demonstration,
8. Gravity sensor automatic rotate,
9. Emergency exams access: automatic record for taking radiography firstly then do patients registration when urgent diagnosis required.
