U-arm floor mounted X-ray machine

Product Introduction

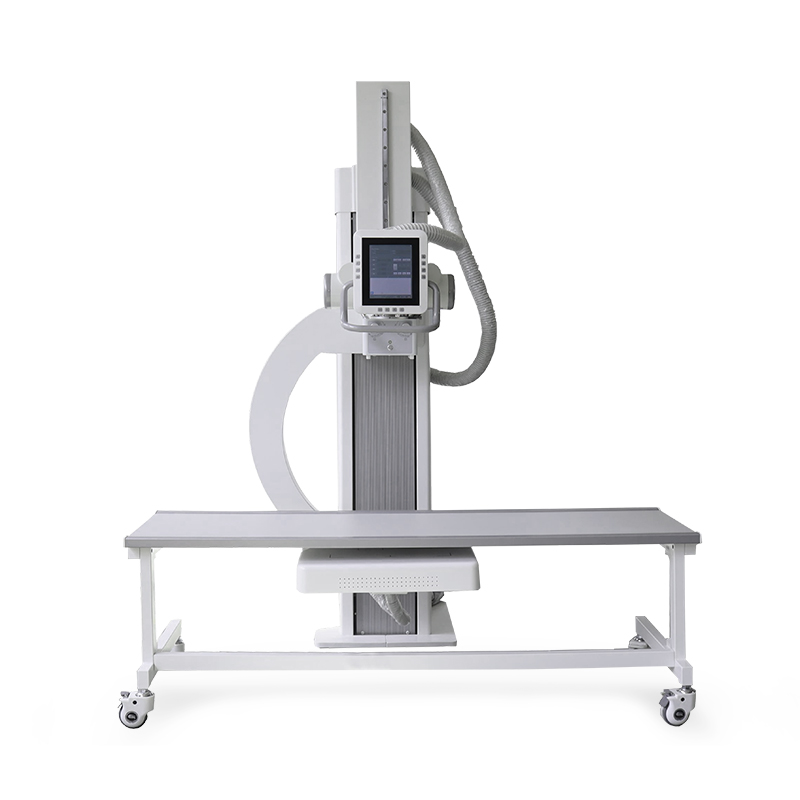

SHO-UDX01 U-arm Digital Radiography X-ray System
Introduction
It is a versatile radiography device with an easy-to-use design for routine examinations. It allows you to practice all types of exams in a standing, sitting or lying down position.
It consists of a safe and reliable U-arm. Flexible U-arm enables all types of diagnostic procedures from table to chest examination. It provides finest image resolution through Flat Panel detector. Easy operations make the work efficient.

Specifications
Ambient Conditions

Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa


X-ray Generator

Model	SHO-UDX01 Series
Output power	32kw	50kw	65kw	80kw
Current	10-400mA	10-630mA	10-800mA	10-1000mA
Voltage	40kv-150kv	40kv-150kv	40kv-150kv	40kv-150kv
mAs	0.1-400mAs	0.1-630mAs	0.1-800mAs	0.1-1000mAs
Exposure time	1ms～6300ms
Focus size	1.0/2.0	0.6/1.2	0.6/1.2	0.6/1.2
APR program	Equipped
Intelligent protection system	It has self-protection system. It will give an alarm and check fault code.



X-ray Tube

Anode type	Rotating Anode
Focal Spot value	0.6mm /1.2mm
Maximum voltage	150KV
Revolving speed of anode	2800rpm
Inherent filtration	1.0mmAl
Anode heat storage capacity	300kHU
Maximum cooling rate of anode	870W
Housing heat storage capacity	900kJ


X-ray detector(Iray brand Flat Panel Detector)

Type	Amorphous Silicon
Scintillator	Cesium Iodide
Active Area	17x17Inch(43cm*43cm)
Active Pixel	3072*3072
Pixel Pitch	139um
A/D Conversion	16bits
DQE	≧70%
Spatial Resolution	36Lp/cm
Acquisition time	≤2S


Collimator

Type	Manual Collimator
Max. Window	440mm×440mm（SID=100cm）
Lamp	AC/DC24V、5W
Lamp timer	Automatic illumination with timer for lamp(30S)
Inherent filtration	1.0mmAl
Illuminant	LED


Grid

Densities	40LP/CM
Ratios	10:1
Size	18”×18”
Focal distance	130cm


Movement

Tube stand

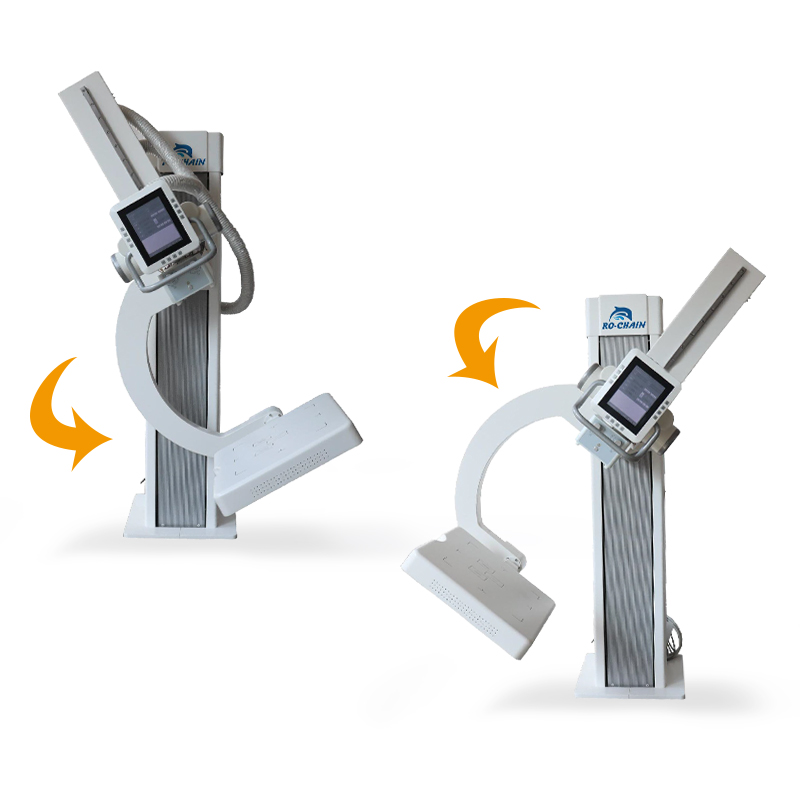

U Arm rotation range	-15°～＋105°
U Arm vertical travel	1200mm
SID range	1000mm～1800mm
Detector rotation range	±45°
Mechanism control	9.7’’ touch screen&remote controller


Workstation

Monitor	24’’ LCD AOC brand
CPU	≥2.0GHz
Memory	≥2GB
HDD	≥500GB
DICOM3.0	Query for integration with any PACS
Functions	Import/export function
	Image info
	Management of patient info
	Post processing
	Measurement etc.
