Double columns floor mounted X-ray machine

Product Introduction

SHO-DDX02 Inshallah

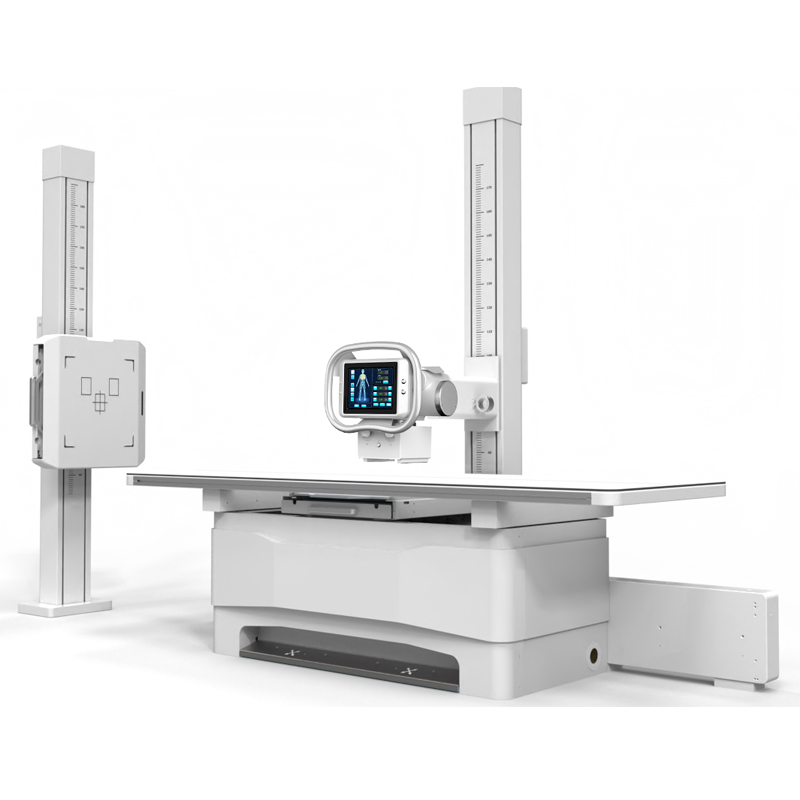

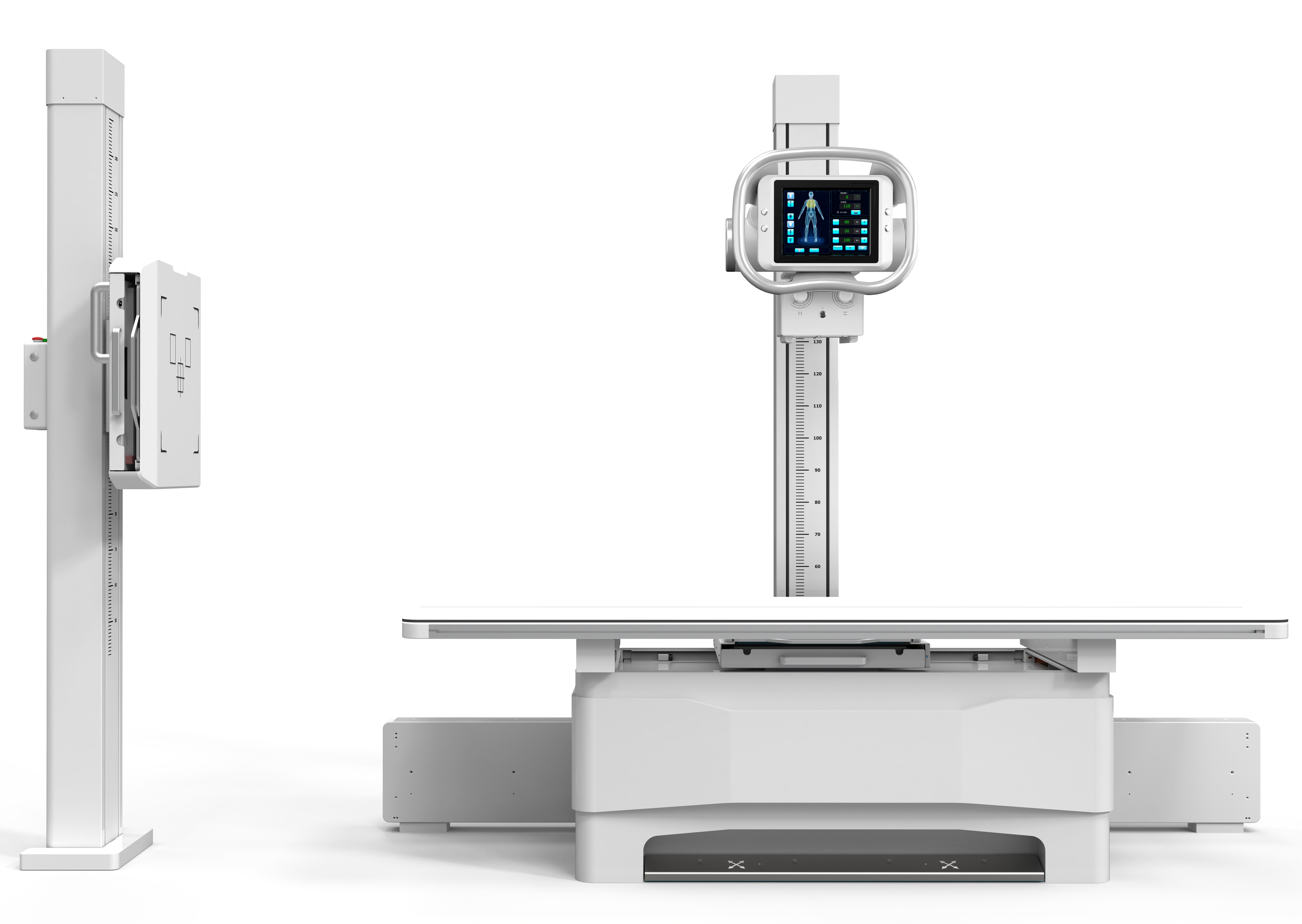

Floor-mounted Digital Radiography System











Introduction
Floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design, modern technological aesthetic bull head with 10.4 inch LCD touch screen, flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.

Features
◆Sophisticated technology, high rotating speed, good heat dissipation, high heat capacity, suitable for long-time clinical examination, long product life.

◆High frequency generator with high X-ray inverse frequency, large power and good X-ray quality.

◆Intelligence high voltage control system with various APR.

◆New generation a-Si Csl flat panel detector with high conversion rate achieves digital image acquisition with low dose.

◆High standard digital image processing system provides more post-processing and meets clinical needs.

Specifications
Ambient Conditions

Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa
Main head	10.4 inch touch screen control panel


X-ray Generator


Model	SHO-DDX02 Series
Output power	20kw	32kw	40kw	50kw	65kw
Current	10-320mA	10-400mA	10-500mA	10-630mA	10-800mA
Voltage	40-125kV	40-125kV	40-125kV	40-150kV	40-150kV
mAs	0.1-320mAs	0.1-400mAs	0.1-400mAs	0.1-630mAs	0.1-630mAs
Exposure time	0.002~6.3S
APR program	Equipped
Intelligent protection system	It has self-protection system. It will give an alarm and check fault code.









X-ray Tube

Model	SHO-DDX02 Series
Output power	20kw	32kw	40kw	50kw	65kw
Anode type	Rotating Anode	Rotating Anode	Rotating Anode	Rotating Anode	Rotating Anode
Revolving speed of anode	50HZ: 2800rpm 60HZ: 3000rpm	50HZ: 2800rpm 60HZ: 3000rpm	50HZ: 2800rpm 60HZ: 3000rpm	50HZ: 2800rpm 60HZ: 3200rpm	50HZ: 2800rpm 60HZ: 3200rpm
Focus size	1.0/2.0	1.0/2.0	1.0/2.0	0.6/1.2	0.6/1.2
Anode heat storage capacity	150KHU	150KHU	150KHU	300KHU	400KHU
Maximum Anode Heat Dissipation	475W	475W	475W	750W	1000W
Housing heat storage capacity	900kJ	900kJ	900kJ	900kJ	1000kJ



X-ray detector(Wired flat Panel Detector)

Type	Amorphous Silicon
Scintillator	Cesium Iodide
Active Area	17x17Inch(43cm*43cm)
Active Pixel	3072*3072
Pixel Pitch	139um
A/D Conversion	16bits
DQE	≧70%
Spatial Resolution	36Lp/cm
Acquisition time	≤2S


 Collimator

Type	Manual Collimator
Max. Window	440mm×440mm（SID=100cm）
Lamp	AC/DC24V、5W
Lamp timer	Automatic illumination with timer for lamp(30S)
Inherent filtration	1.0mmAl
Illuminant	LED


Grid

Densities	40LP/CM
Ratios	10:1
Size	18”×18”
Focal distance	100cm(Radiography table), 180cm(Bucky stand)


Photography table

Type	Radiography Table
Tabletop size	2300mm×800mmX700mm
load-bearing	300KG
Floating front and back	200mm±10mm
Floating left and right	740mm±10mm
FPD tray movement range	580mm±15mm




Column stand movement

Tube stand
Up-down movement（to photography table）	1500mm±10mm
Stand left-right movement	1900mm±10mm
Rotational angles of stand	+180°～-180°
Backy stand
Detector vertical movement range (distance between detector center and ground)	1500mm±10mm
The lowest point of the detector center relative to the ground	≤460mm
Automatic tracking function	Yes, electric correspondence between the X-ray tube and flat panel detector



Workstation

Monitor	23’’ LCD Dell brand
CPU	≥2.8GHz
Memory	≥8GB
HDD	≥1TB
DICOM3.0	Query for integration with any PACS
Functions	Import/export function
	Image info
	Management of patient info
	Post processing
	Measurement etc.



Console

Control room console	10.4 inch LCD color touch screen console for exposure parameter setting and exposure
Controller	Wired controller for electric movement
