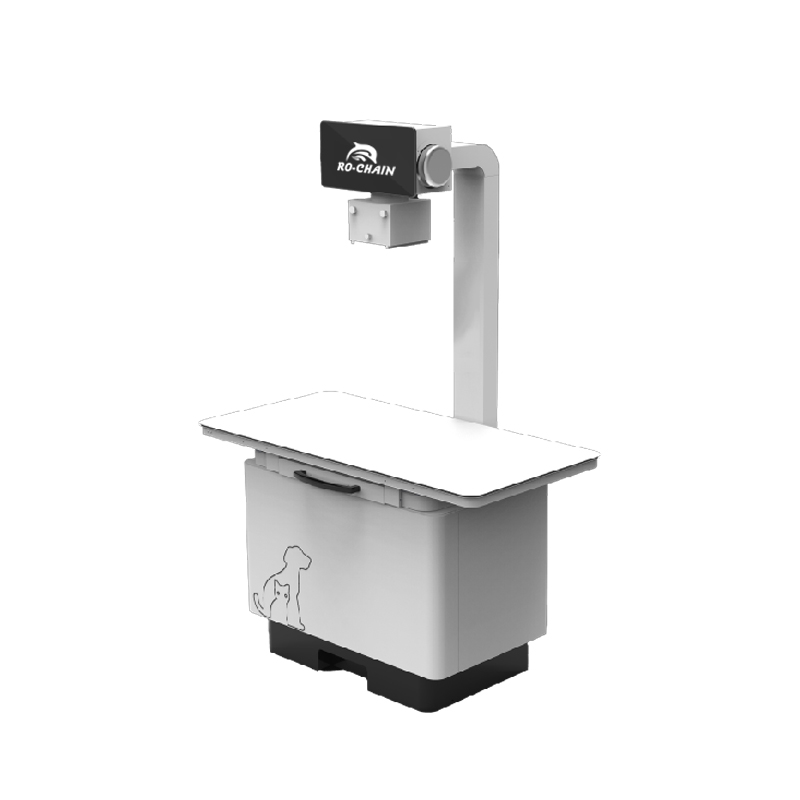

Veterinary Digital X-ray Photography System
Model: SHO-V32-B
Fill in the form to get more product information
Product Introduction
SHO-V32-BFeatures:
This X-ray system is specialized in Veterinary digital radiography, and it is suitable for any parts of pet as it’s high quality images and low-dose radiation. It is widely used in pet hospital and clinic.
Technical Specification:
| Model |
SHO-V32-B |
| Screen display | 10 inch touch screen |
| Power | 40KVA |
| Output power | 32KW |
| Frequency | 25KHZ |
| Current | 10~400mA |
| Voltage | 40~125KV |
| Anode type | Rotating anode |
| Focal spot size | 1.0mm/2.0mm |
| Anode revolving speed | 2800rpm |
| Inherent filtration | 10mmAl |
| Type | Amorphous Silicon |
| Active area | 17x17inch |
| Active pixel | 2912*2912 |
| Pixel pitch | 139um |
| A/D conversion | 16bits |
| Floating table bearing | 150kg |
