FANTASY

Model: SHO-PXF Series

Fill in the form to get more product information

Product Introduction

SHO-PXF Series






Features:

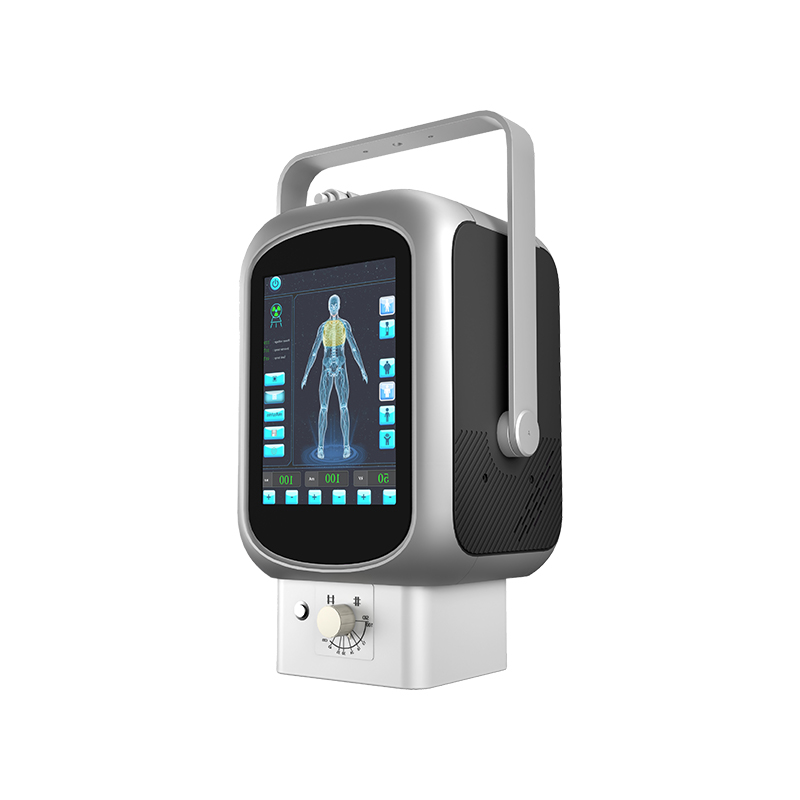

This new portable X-ray machine launched by our company pays equal attention to elegance and technology, and has high quality, with two options of 8KW and 10KW, laser collimator, especially suitable for obese patients, and is good at photographing the lumbar spine and abdomen and other parts with thick fat. 10.4 inch Color touch screen, adjustable trolley, easily exposure through wired hand brake, wireless remote controller and exposure button on screen, 17X17 inch wired FPD, 15.6inch Dell brand laptop computer.




Technical Specification


Model		 SHO-PXF01 SHO-PXF02
Power 8kw(with battery) 10kw(with battery)
High voltage Generator
KV Range 40~125KV 40~125KV
mAs range 0.1~200mAs 0.1~200mAs
mA range 20~100mA 10~100mA
Working frequency ≥40kHz
Communication mode RS232
Exposure time 0.01S~4S
Exposure mode Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat strorage 56KHU
Focal spot 1.8mm
Anode Angle 15°C
Collimator
Power supply AC/DC 24V±10%
Light type Laser collimator
Light delay time 30±2S
Illumination ≥160Lux
Inherent filtration 1.2mmAL@75KV
Flat Panel detector ★ Model: Venu1717X (Iray brand)
★Dimension (L×W×H):460mmx460mmx15mm
★ X-ray Energy: 40-150kV
★ Scintillator: CsI:Tl
★ Pixel Size: 139um
★ Fill Factor: 70%
★ Effective Array: 3072x3072
★ Effective Area (H x V): 427mm×427mm
★ Spatial Resolution: Min. 3.4 lp/mm
★ Image Transfer: Gigabit Ethernet

Working station(Console) Brand: Dell
Model: Vos15-3520
Processor:  Smart Intel ® Core ™ i5-1135
Operating system: Windows 11 Home
Graphics Card: Intel ® UHD graphics
Card Memory: 32 GB DDR4
Storage: 512 GB SSD
Display size 15.6-inch screen Full HD (1920X1080)
Net weight: 1.69kg
Thickness: 16.96mm

Dimension
Head screen 10.4inch LCD Color touch screen
Trolley height adjustable range
515~1810mm(from spot to floor)
