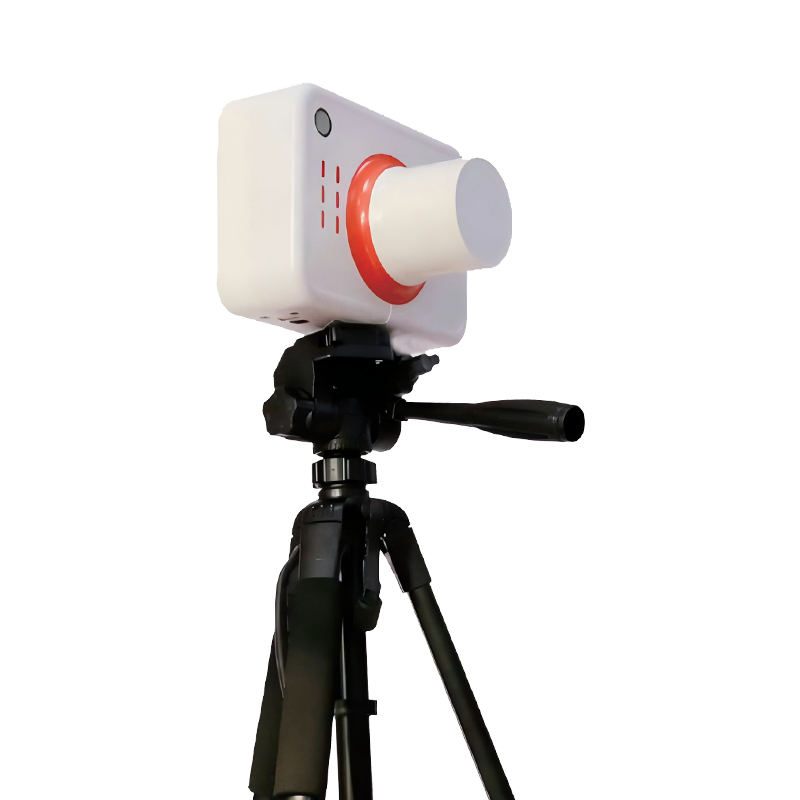

Hand-held portable X-ray machine
Model: SHO-HX02
Fill in the form to get more product information
Product Introduction
SHO-HX02Hand-held portable X-ray machine
This Handheld high-frequency x-ray machine is a portable and easy-to-use x-ray device with various features and advantages, suitable for medical, industrial inspection, security checks, and other fields.
Features:
◎Portability and Flexibility
They are designed to be lightweight and compact, easy to carry and move, and suitable for various working environments and occasions.
◎Rapid Deployment
The ability to be deployed quickly, without the need for complex installation and setup processes, allowing for rapid equipment startup and inspection work.
◎Battery Powered
Powered by batteries, without the need for external power sources, making them more portable and flexible, allowing them to work without a power supply.
◎Easy Operation
Feature an intuitive user interface and easy-to-understand control system, allowing operators to get started quickly without complex training.
◎Adaptability
Suitable for medical imaging in dentistry and orthopedics. Its portable design and advanced technology provide great convenience, ensuring accurate and efficient imaging for medical purposes.
Specification Parameters
Technical specification:
Maximum Output Power： 360W
Input Power Supply： 110-220VAC
Output Voltage： 40-70kV
Working Frequency： 100kHz
Current Range： 1-8mA
Weight： 1.6kg
Exposure Time Range： 0.01-4s
mAs Range： 0.01-10mAs
Exposure Mode： Key, Remote control
