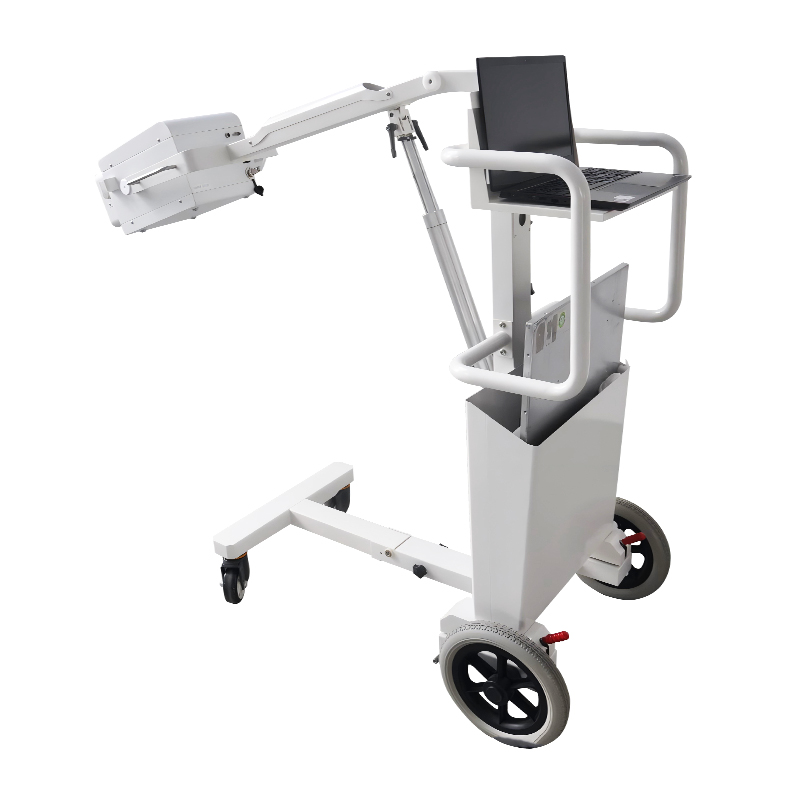

Portable digital X-ray machine Deluxe model
Model: SHO-PXD Series
Fill in the form to get more product information
Product Introduction
SHO-PXD SeriesFeatures:
10.4 inch Color touch screen, adjustable deluxe trolley with Laptop computer stand and FPD box, wired 17x17 inch FPD, 15.6 inch Dell brand laptop computer, easily exposure through wired hand brake, wireless remote controller and exposure button on screen.
Technical Specification
Model |
SHO-PXD01 | SHO-PXD02 | SHO-PXD03 |
Power | 5kw | 5.6kw(with battery) | 8kw |
High voltage Generator | |||
KV Range | 40~110KV | 40~125KV | 40~125KV |
mAs range | 0.2~200mAs | 0.1~200mAs | 0.1~200mAs |
mA range | 20~100mA | 10~100mA | 10~100mA |
Working frequency | ≥40kHz | ||
Communication mode | RS232 | ||
Exposure time | 0.01S~4S | ||
Exposure mode | Hand brake, wireless hand remote controller, touch screen button | ||
X-ray tube | |||
Anode heat strorage | 56KHU | ||
Focal spot | 1.8mm | ||
Anode Angle | 15°C | ||
Collimator | |||
Power supply | AC/DC 24V±10% | ||
Light type | LED 5W | ||
Light delay time | 30±2S | ||
Illumination | ≥160Lux | ||
Inherent filtration | 1.2mmAL@75KV | ||
Flat Panel detector | ★ Model: Venu1717X (Iray brand) ★ Dimension (L×W×H):460mmx460mmx15mm ★ X-ray Energy: 40-150kV ★ Scintillator: CsI:Tl ★ Pixel Size: 139um ★ Fill Factor: 70% ★ Effective Array: 3072x3072 ★ Effective Area (H x V): 427mm×427mm ★ Spatial Resolution: Min. 3.4 lp/mm ★ Image Transfer: Gigabit Ethernet |
||
Working station(Console) | Brand: Dell Model: Vos15-3520 Processor: Smart Intel ® Core ™ i5-1135 Operating system: Windows 11 Home Graphics Card: Intel ® UHD graphics Card Memory: 32 GB DDR4 Storage: 512 GB SSD Display size 15.6-inch screen Full HD (1920X1080) Net weight: 1.69kg Thickness: 16.96mm |
||
Dimension | |||
Main head unit | 290X265X230mm | 425X240X220mm | 425X240X220mm |
Net weight | 19kg | 18kg | 18kg |
Head screen | 10.4inch LCD Color touch screen | ||
Trolley height adjustable range | 515~1810mm(from spot to floor) |
