Portable X-ray machine Mini model

Model: SHO-SP18 (1.8KW) with battery

Fill in the form to get more product information

Product Introduction

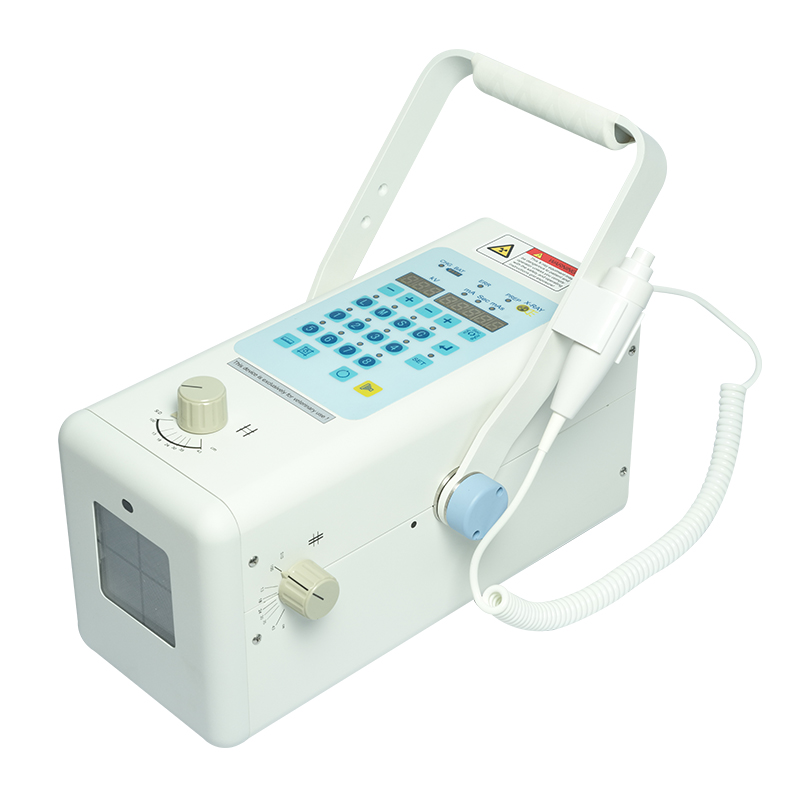

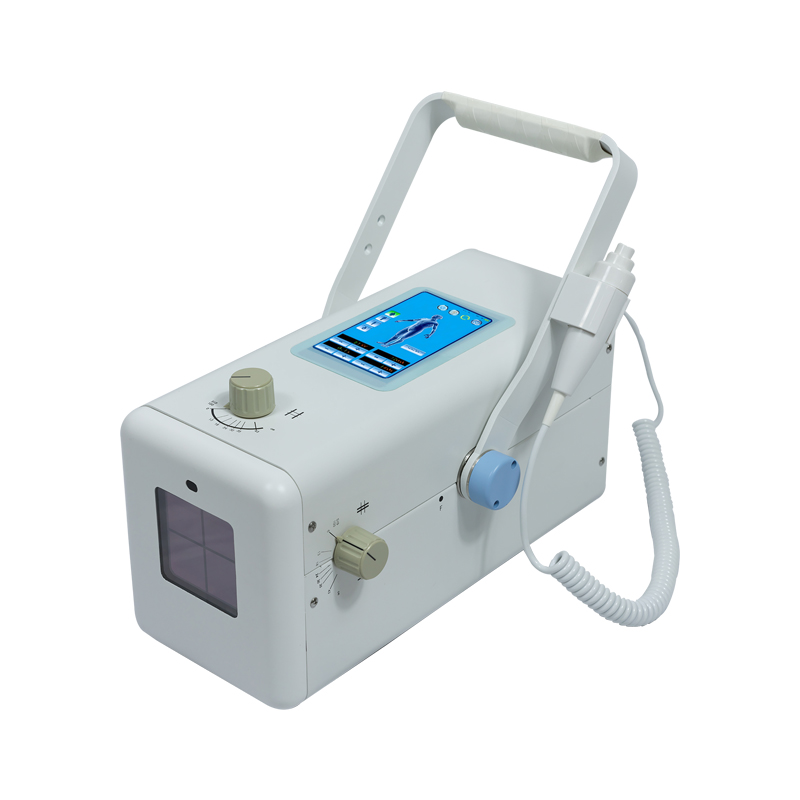

Ultrahigh Frequency Super Portable X-ray Machine  SHO-SP18

This super portable X-ray machine is widely used in emergency medical services and veterinary fields. The super lightweight 1.8kW UHF generator, with a maximum tube voltage of 90kV, can meet the basic radiography needs of daily outdoor diagnosis.

Technical data:

·Nominal Out Power: 1.8kW

·kV Range: 40-90kV

·mA Range: 2-40mA

·mAs Range: 0.1-16mAs

·Exposure Time Range: 0.01-8s

·Operating Frequency: ≥300kHz

·Power Voltage：100 ~ 240VAC, Output: 32VDC/8A

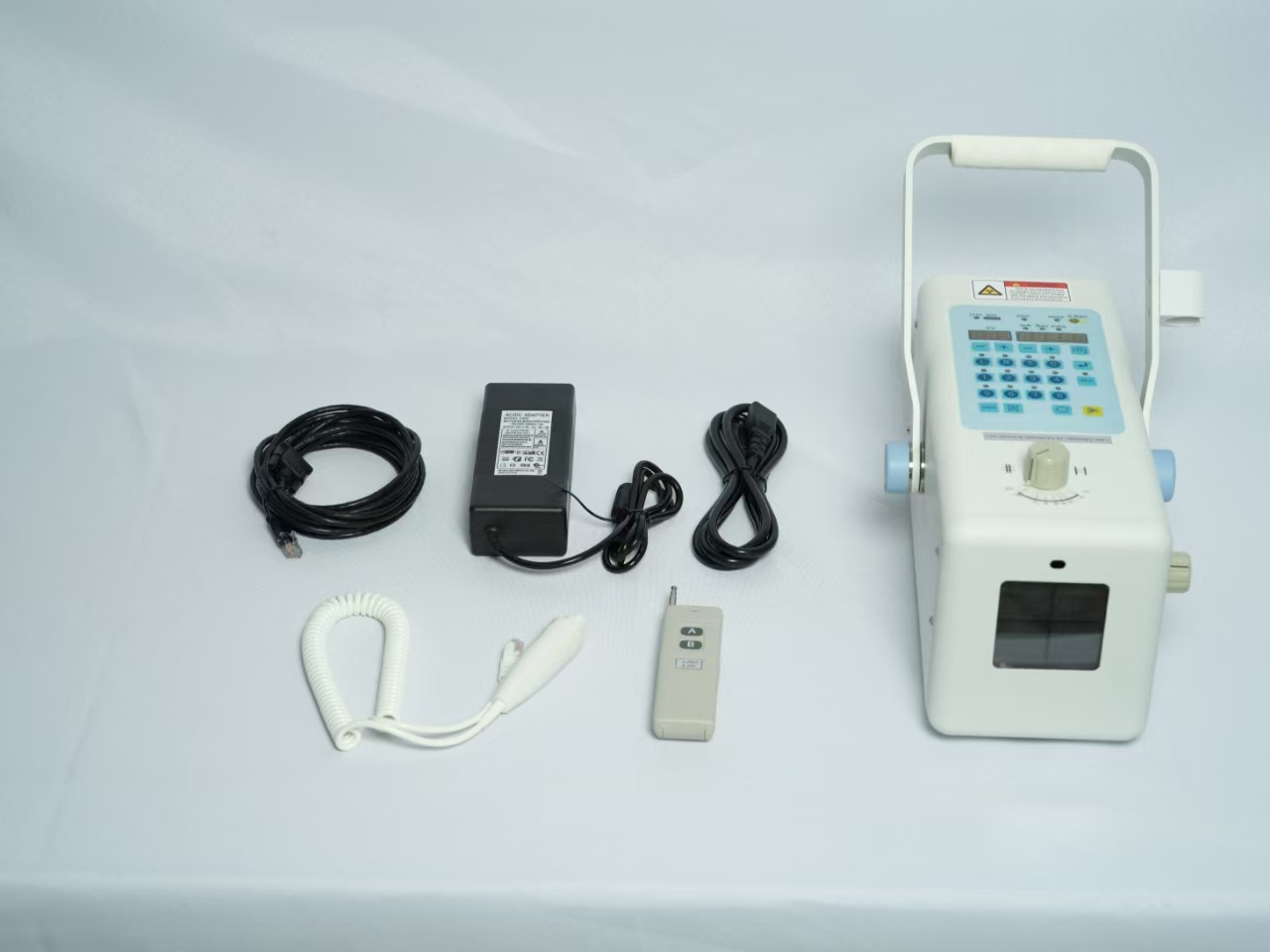

·Accessories: Exposure handbrake, Exposure remote control

·Full Charging Time: 3h

·It can expose 300 times at nominal power when fully charged.

·Machine Dimensions：345*157*177mm

·Net weight: 12kg
