BASIC

Model: SHO-PX Series

Fill in the form to get more product information

Product Introduction

SHO-PX SERIES





Features:

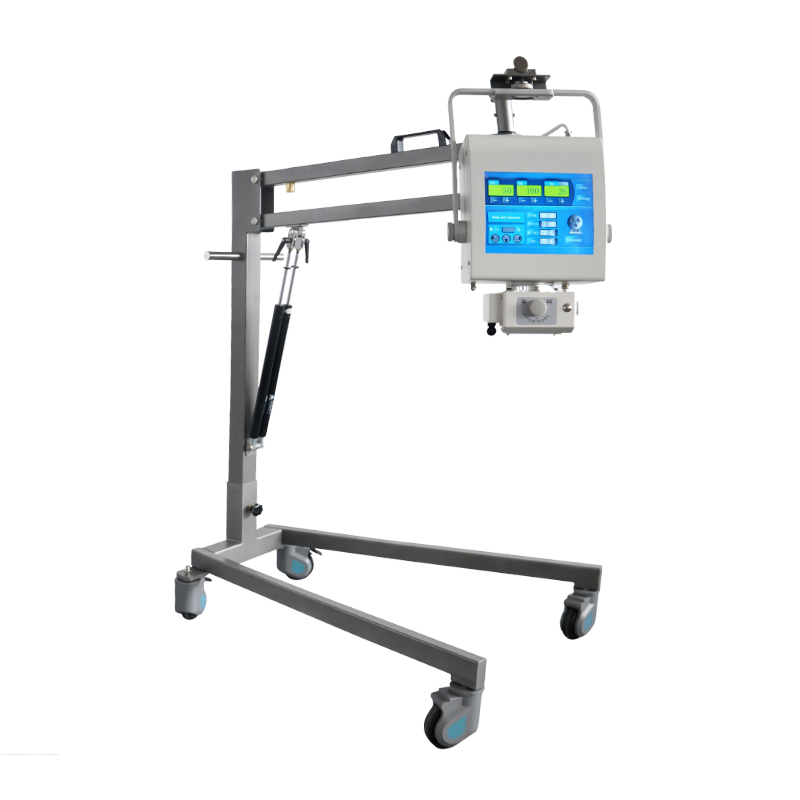

10.4 inch Color touch screen, adjustable trolley, 17X17 inch wired FPD, 15.6inch Dell brand laptop computer, easily exposure through wired hand brake, wireless remote controller and exposure button on screen.



Technical Specification

Model		 SHO-PX01 SHO-PX02 SHO-PX03
Power 5kw 5.6kw(with battery) 8kw
High voltage Generator
KV Range 40~110KV 40~125KV 40~125KV
mAs range 0.2~200mAs 0.1~200mAs 0.1~200mAs
mA range 20~100mA 10~100mA 10~100mA
Working frequency ≥40kHz
Communication mode RS232
Exposure time 0.01S~4S
Exposure mode Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat strorage 56KHU
Focal spot 1.8mm
Anode Angle 15°C
Collimator
Power supply AC/DC 24V±10%
Light type LED 5W
Light delay time 30±2S
Illumination ≥160Lux
Inherent filtration 1.2mmAL@75KV
Flat Panel detector ★ Model: Venu1717X (Iray brand)
★ Dimension (L×W×H):460mmx460mmx15mm
★ X-ray Energy: 40-150kV
★ Scintillator: CsI:Tl
★ Pixel Size: 139um
★ Fill Factor: 70%
★ Effective Array: 3072x3072
★ Effective Area (H x V): 427mm×427mm
★ Spatial Resolution: Min. 3.4 lp/mm
★ Image Transfer: Gigabit Ethernet

Working station(Console) Brand: Dell
Model: Vos15-3520
Processor:  Smart Intel ® Core ™ i5-1135
Operating system: Windows 11 Home
Graphics Card: Intel ® UHD graphics
Card Memory: 32 GB DDR4
Storage: 512 GB SSD
Display size 15.6-inch screen Full HD (1920X1080)
Net weight: 1.69kg
Thickness: 16.96mm

Dimension
Main head unit 290X265X230mm 425X240X220mm 425X240X220mm
Net weight 19kg 18kg 18kg
Head screen 10.4inch LCD Color touch screen
Trolley height adjustable range
515~1810mm(from spot to floor)
