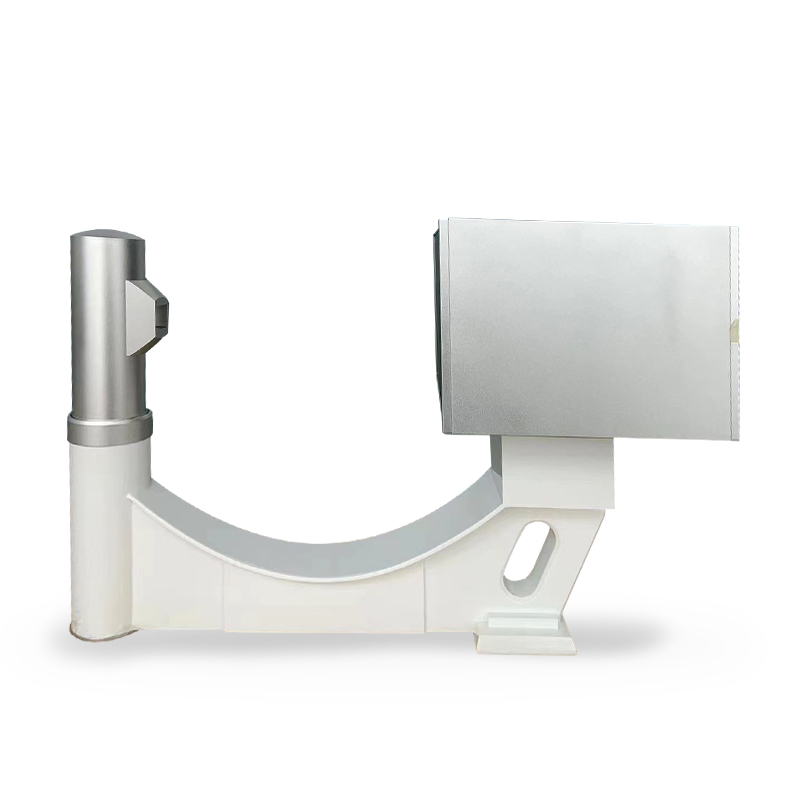

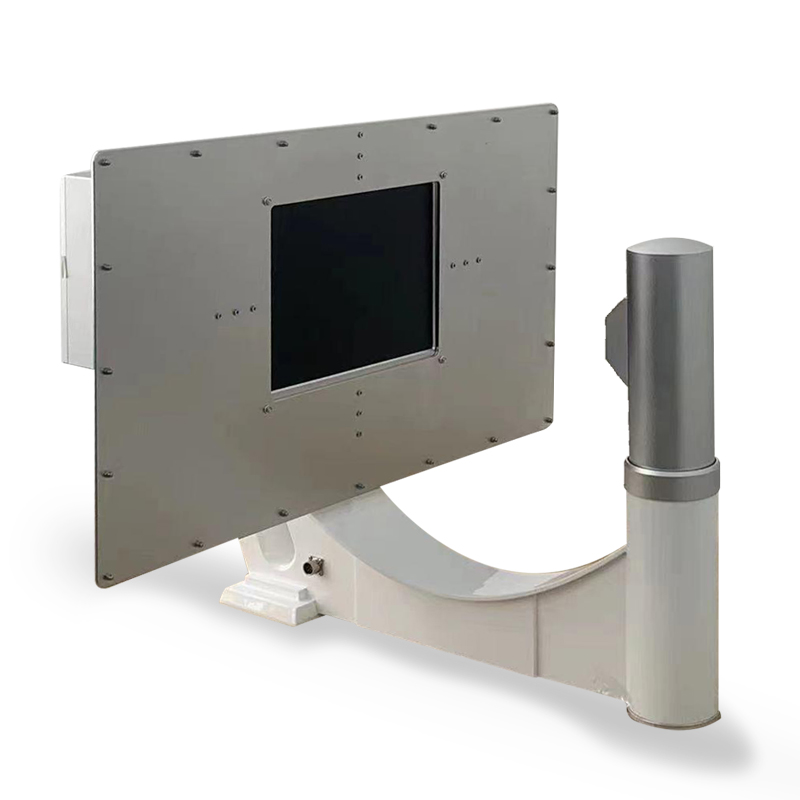

Portable digital X-ray machine Star model

Model: SHO-X-STAR (5KW)

Fill in the form to get more product information

Product Introduction

Product number SHO-X-STAR
Effective field of view ≤220 X 160 mm
The thickness of the measured object ≤300 mm
X-ray tube operating voltage 45-90 KV Continuous adjustment
Voltage regulation accuracy ≤±10%
X-ray tube operating current 0.25-0,5mA Continuous adjustment
Steady flow accuracy ≤+20%
Focus position and reference axis deviation ±1 mm
Image Resolution ≤3 lp/mm
Mainframe working frequency 20 KHZ
Mainframe working frequency ≤0.33 mGy/h
Input power supply AC 220V+10%
Host size 63cm X 42cm X 25cm
Host net weight ≤9 kg
